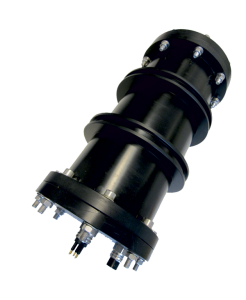

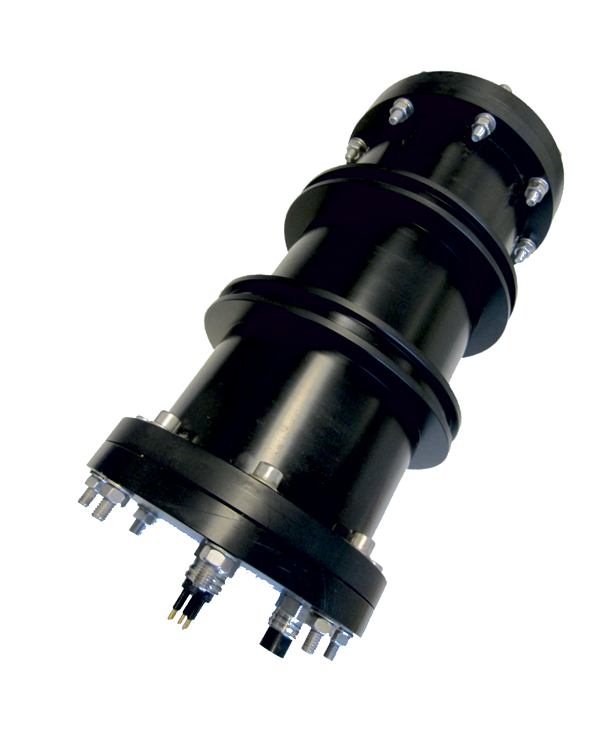

DAC-IT – SUBMERSIBLE DATA ACQUISITION SYSTEM

Description

The DAC-IT provides a complete data acquisition system using the Campbell CR1000 plus broad band modem incl. inside antenna and high efficient DC/DC converters.



The container consist of a Delrin compound for shallow water, intertidal applications.



Monitoring programs be supplied on request.



Titanium deep sea containers for DAC-DS (-DS =deep sea) on request.

Specifications

  • Dimensions: 380mm x175mm(diam.)
  • Weight: 4.5 kg
  • Material: POM, black
  • Connectors: SubConn
  • Input DC power: 10 … 40 VDC, 1.5A max.
  • Pressure: 10 bars
