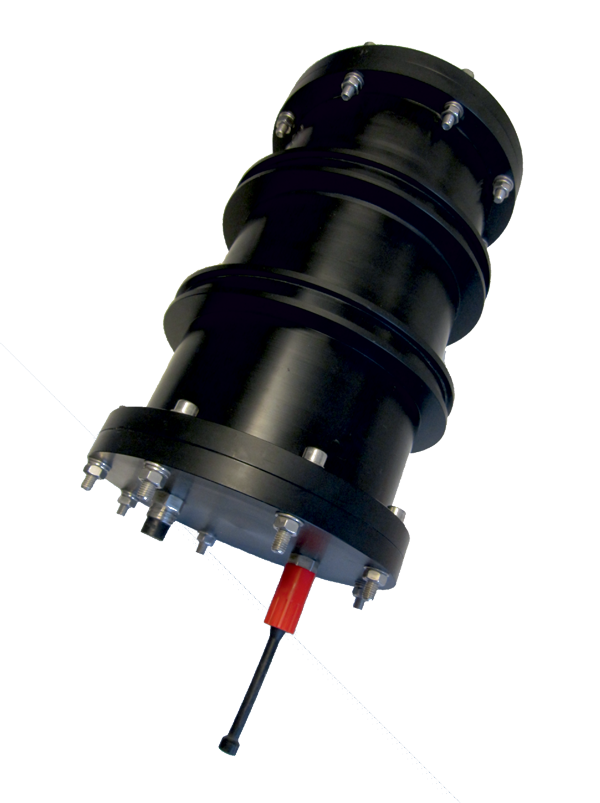

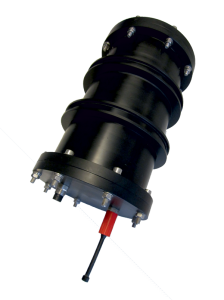

PSC – SUBMERSIBLE BATTERY CONTAINER

Description

The PSC containes standard D-Cell batteries to power up oceanographic instruments. No special battery brands are needed.

A complete data acquisition system using the Campbell CR1000 plus GPRS modem (CDMA) incl. inside antenna and high efficient DC/DC converters.

The container consist of a Delrin compound for shallow water, intertidal applications.
CR Basic monitoring programs can be supplied on request.

Specifications

  • Dimensions: 380mm x175mm(diam.)
  • Weight: 4.5 kg
  • Material: POM, black
  • Connectors: SubConn
  • Out DC power: 24 VDC, 1.5A max.
  • Pressure: 10 bars
  • Standard battery: D-Cell alkaline for 1 kWh capacity
